TFT LCD Display Module 1.28 Inch Round , 240×240 Resolution , 8 Bit MCU Interface
ZP0128044-B1 is a 1.28 inch color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). It is composed of a color TFT-LCD panel, driver IC, FPC and a backlight unit. The module display area contains 240 X 240 pixels and can display up to 262K colors. This product accords with RoHS environmental criterion.
TFT LCD Display Key Specifications / Special Features :
| Display Size | 1.28 Inch | Resolution | 240 ( RGB ) X 240 |
| Outline Dimension | 35.60 x 37.74 x 1.56 mm | Interface | 8 Bit MCU Interface |
| Brightness | 280 Nits | Viewing Direction | All View |
| Operating Temperature | -20 To 70 ℃ | Touch Panel | Optional |
| Active area | 32.40 x 32.40 mm | Driver IC | GC9A01 |
| Contrast ratio | 450 : 1 | Storage Temperature | -30 To 80 ℃ |
| Viewing angle | 30/ 30 / 30 / 30 | Backlight | White LED x 2 |
| Current | 40 mA | FPC Connector | 24 pin |
LCD Display Module Applications
Digital products , POS machine , instrument & meter , automobile electronics , communication machine , medical machine , security machine , household electrical appliances and others .
Packing term
Protect product with polyfoam and multi layer paper board .
Special protect carton for exporting product .
Per customer requirement .
TFT LCD Display Module Delivery term
For samples , we will finish production and ship within 7 working days . We usually arrange DHL , UPS , FedEx express to ship samples .
For bulk orders , usually 30 working days and depends on your design . For bulk orders, we support shipping by air or by sea as per customers' requirements .
Custom design OEM/ODM solutions
We support both standard and customized products and can put your logo on the products . Our experienced R&D team will support technical questions . ODM/OEM products are warmly welcome .
Our Advantages
Prompt reply within 12 hours .
Products with top quality .
Very competitive prices .
Small MOQ accepted .
More than 10 years’ experience in LCD R&D and manufacturing .
Strong R&D term supports perfect customized projects .
Fabulous after-sale service.

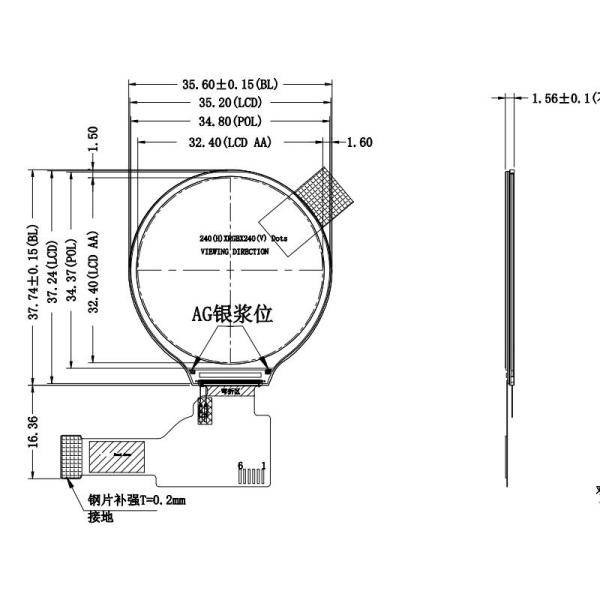

TFT LCD Display Module 1.28 Inch Mechanical Drawing
