Industrial TFT Display , BP101WX1-206 10.1 Inch BOE LCD Module1280x 800 Dots 40 Pins FPC LVDS
BP101WX1-206 10.1 Inch BOE 1280x 800 Dots Industrial TFT Display Key Specifications/Special Features:
BOE Technology Group Co., Ltd. (hereafter called BOE) BP101WX1-206 is a 10.1 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized in the following: WLED Backlight, With LED Driver, Reverse I/F, Glossy . Based on its features, we recommend that this model be applied to Pad & Tablet etc.
| Panel typeI | IPS type |
| Panel size | 10.1 inch |
| Resolution | 1280 (RGB) x 800 dots |
| Outline dimension | 229.6*149.2*2.6 mm |
| Active area Size | 216.96*135.60 mm |
| Viewing direction | ALL |
| Viewing angle(U/D/L/R) | 80/80/80/80 degree |
| Contrast ratio | 600:1 |
| Brightness | 330 cd/m2 |
| Interface | MIPI |
| PIN number | 40 |
| Operating temperature | 0 to 50°C |
| Storage temperature | -20 to 60°C |
| With Touch Panel or NOT | Without |
Brand BOE
Model BP101WX1-206
Diagonal Size 10.1 inch
Type a-Si TFT-LCD , LCM
Pixel Format 1280(RGB)×800 [WXGA] 149PPI
Configuration RGB Vertical Stripe
Active Area 216.96(H)×135.6(V) mm
Outline Dim. 228.6(H)×149.2(V) ×4.59(D) mm
Bezel Area 220.46(H)×139.25(V) mm
Treatment Glare (Haze 0%), Hard coating (3H), Antireflection
Luminance 330 cd/m² (Typ.)
Contrast Ratio 600:1 (Min.) (TM)
View Direction Symmetry
Response Time 25 (Typ.)(Tr+Td)
Viewing Angle 80/80/80/80 (Typ.)(CR≥10) Left / Right / Up / Down
Operating Mode ADS, Normally Black, Transmissive
Support Color 16.7M 50% NTSC
Light Source WLED , 15K hours , With LED Driver
Weight 150g (Max.)
Designed For Pad & Tablet
Frame Rate 60Hz
Touch Panel Without
Interface Type LVDS (1 ch, 8-bit) , 40 pins Connector
Power Supply 3.3V (Typ.)
Environment Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
BP101WX1-206 10.1 Inch BOE 1280x 800 Dots Industrial TFT Display Applications
Digital products, POS machine, instrument & meter, automobile electronics, communication machine, medical machine, security machine, household electrical appliances and others
BP101WX1-206 10.1 Inch BOE 1280x 800 Dots Industrial TFT Display Packing term
Protect product with polyfoam and multi layer paper board.
Special protect carton for exporting product,
Per customer requirement.
BP101WX1-206 10.1 Inch BOE 1280x 800 Dots Industrial TFT Display Delivery term
For samples, we will finish production and ship within 7~15 working days. We usually arrange DHL, UPS, FedEx express to ship samples.
For bulk orders, usually 25~35 working days and depends on your design. For bulk orders, we support shipping by air or by sea as per customers' requirements.
Custom design OEM/ODM solutions
We support both standard and customized products and can put your logo on the products. Our experienced R&D team will support technical questions. ODM/OEM products are warmly welcome.
Our Advantages
Prompt reply within 12 hours.
Products with top quality.
Very competitive prices.
Small MOQ accepted.
More than 10 years’ experience in LCD R&D and manufacturing.
Strong R&D term supports perfect customized projects.
Fabulous after-sale service.

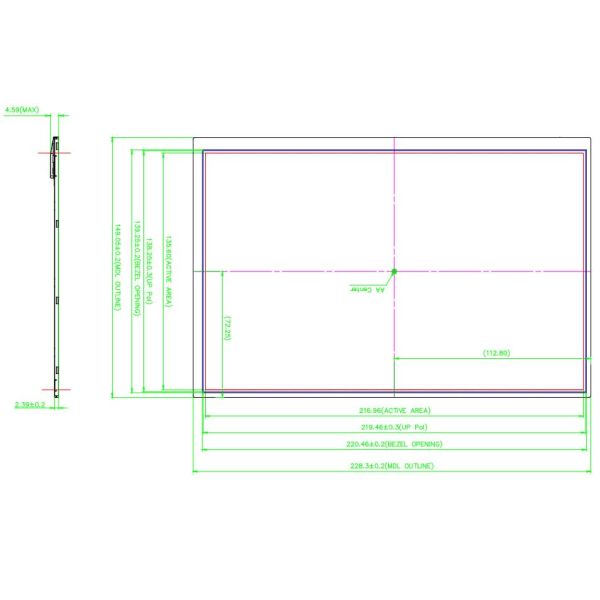

BP101WX1-206 10.1 Inch BOE 1280x 800 Dots Industrial TFT Display Mechanical Drawing
